SOL - Kangaroo 4

SOL - Kangaroo 4

Price: $3800.00

Product Code: K4

Product Status: available

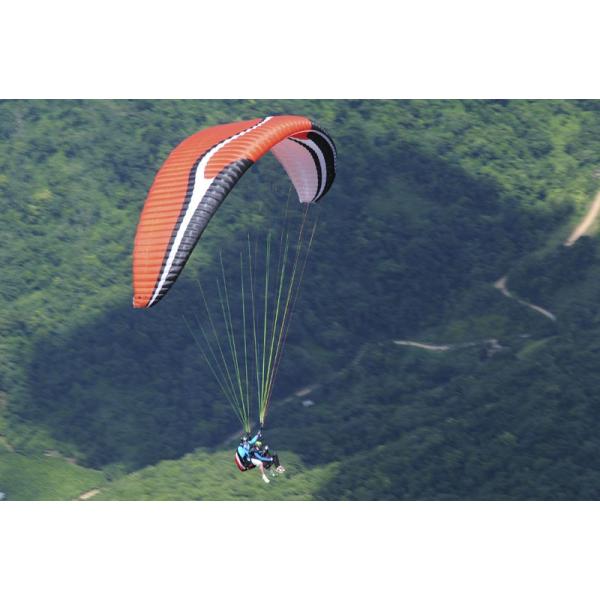

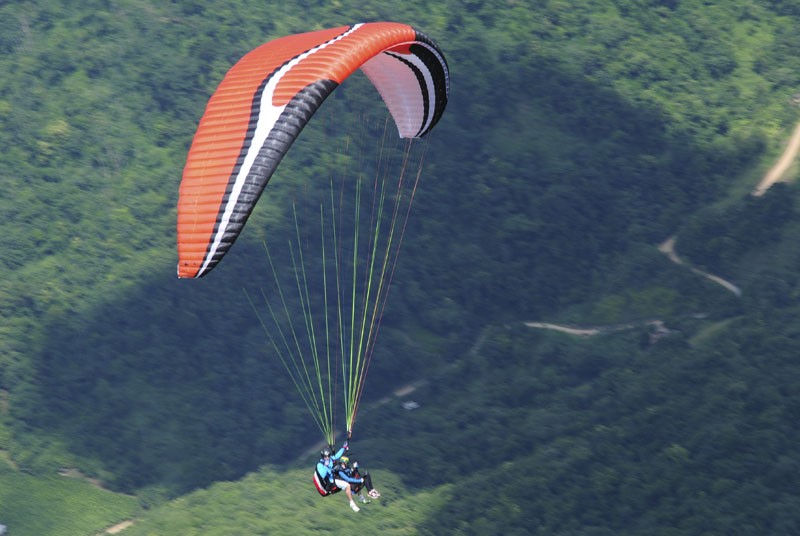

The KANGAROO FOUR is the evolution for the Kangaroo series that innovated in the concept of tandem wings.
Its predecessors are symbols of tandem wings with performance and features beyond those found in the market, that established world records and memorable flights.

After 2 years of tests, many prototypes and several hours flying, we present the KANGAROO FOUR that innovates in performance and construction of tandem gliders.

Features:






Downloads







Certification



Tests Results EAPR   TC (trimmer closed)  TO (trimmer open)
Certification EAPR PROTOCOLO UN





Photos









The Project


The KANGAROO FOUR requires experienced and qualified tandem pilots. The performance and handling of the KANGAROO FOUR make the key difference between the tandem paragliders.

The efficiency is similar to a high performance paraglider. Its maneuverability allows to climb even in the smallest and weakest thermals. It is an excellent compromise between ease of use and performance to conquer great flights.





Flight Characteristics



The increase of aspect ratio allows a precise pilotage for active pilots that like to apply bodyshift, as well as for passive pilots who prefer to act more on the brakes. This characteristic allows great efficiency in weak and strong thermals, always maintining its shape solid and stable.

Flight characteristics:

‚Äč




Construction Characteristics



The KANGAROO FOUR has a sofisticated construction for its category:

  • 65 cells, 12 being closed;
  • Diagonal bands (A, B, C e D) in all cells;
  • Central Diagonal Double V-Tabs (DVT);
  • Mini-Ribs;
  • Flexible battens (BT technology);
  • New line layout, with consumption reduction of 15%;
  • System of direct connection to the brake lines;
  • PBP - Pressure Booster Profile: New profile design that maintains form and pressure and increases performance in the whole speed range;
  • Trimmers for acceleration;
  • Big ear risers.

The materials used were carefully chosen, which guarantees a superior durability and high level of safety.




Design and Construction



The KANGAROO FOUR uses a new profile that has been fully developed on the simulator. The result is stability combined with performance.

The layout is progressive and moderrn, an elaborated construction of 65 cells and a bigger projected aspect ratio in relation to its predecessor. This allows to use the broad spectrum of the profile without prescinding from the safety and excellent controllability of the project.

More efficient and sophisticated calculations were used with the result of a very clean and extremely smooth canopy. Diagonal bands in all cells reduce the quantity of lines and optimise the control precision.







Techical Data




Zoom Zoom 1
Células Celss 65
Envergadura Projetada Projected Wingspan 12,1 m
Área Projetada Projected Surface 31,77 m2
Alongamento Projetado Projected A/R 4,61
Envergadura Real Real Wingspan 15,20 m
Área Real Real Surface 36,99 m2
Alongamento Real Real A/R 6,25
Diâmetro das Linhas Line Diameter 0,6-1-1,2-1,5-2,1-2,5 mm
Altura Height 944 cm
Perfil Máximo Maximum Profile 304 cm
Perfil Mínimo Minimum Profile 48 cm
Peso da Vela Weight 8,9 kg
Peso de Decolagem Take off weight 140/204
308/449
kg
lbs
Afundamento Mínimo Sink Rate Min 1 m/s
Velocidade Mínima Minimum Speed 24 +/- 1 km/h
Velocidade Trimm Speed 42 +/-1 km/h
Velocidade Máxima Maximum Speed 52 +/- 1 km/h
Planeio Glide 10,6 km/h
Assentos Places 2
Certificação Certification C LTF/EN





2D View









Materials




Since 1991 SOL has been producing and following the evolution of materials and products. Our experience makes us choose the materials carefully, thus guaranteeing a good stability and a high safety level. All SOL paragliders are manufactured in our own plant, certified by DHV


Top/Bottom:  WTX 40 gr/m2 Nylon 6.6 HT PU+Silicone

Profiles: Pro-Nyl 42 gr/m2 Nylon 6.6 HT PU hard

Reinforcements: Nylon Battens (profile front)

Lines:


Risers: Premium 19 x 2,0 mm flat multi  Bl. 1.600 kg

Carabiners: Ansung Precision 4mm 800kg

Pulleys:  Nautos/SOL






Technologies




SOL technologies for performance and comfort applied on KANGAROO FOUR






Delivery Includes



  • Big deluxe backpack
  • Risers' protection sack
  • Spread Bar
  • Internal protection bag
  • Wind sock M
  • User's Manual
  • Compression strap
  • Basic repair kit
  • Cap
  • Measuring Tape to check the distance between carabiners.
