SOL- ELLUS 5
Price: $3800.00
Product Code: SOL- ELLUS 5
Product Status: available
SOL Ellus Five - the choice for a world of possibilities
The all new ELLUS FIVE, certificated with LTF/EN B, is an evolution within the "Ellus-Family", the fith generation. With his improved characteristics of handling and performance, glide, speed and stability the new Ellus Five is the perfect paraglider for pilots who want to consolidate the thermal flight and like to go on distance for many km without leaving the paraglider-category.
The ELLUS FIVE has its position above the gliders destinated for the entry to the level B, he offers clearly much more performance.
Characteristics of SOL ELLUS FIVE and diferences to the predecessors:
- Glide (0.5 points more);
- Battens (BT technology);
- More A/R real and projected;
- Thin risers 15 mm;
- 3 risers and lines for "big ears";
- New lay-out, profiles and new construction for the diagonal bands;
- New BOW Tech - Greater lift in the same sail area and better pressure distribution across wingspan glider.
Available in 4 size with LTF / EN - B certification + 2 special sizes with load test.
The SOL ELLUS FIVE combines our technologies for performance, safety and long life.
Downloads
Certification
LTF/EN-B.
| Test Results | S | M | L | XL |

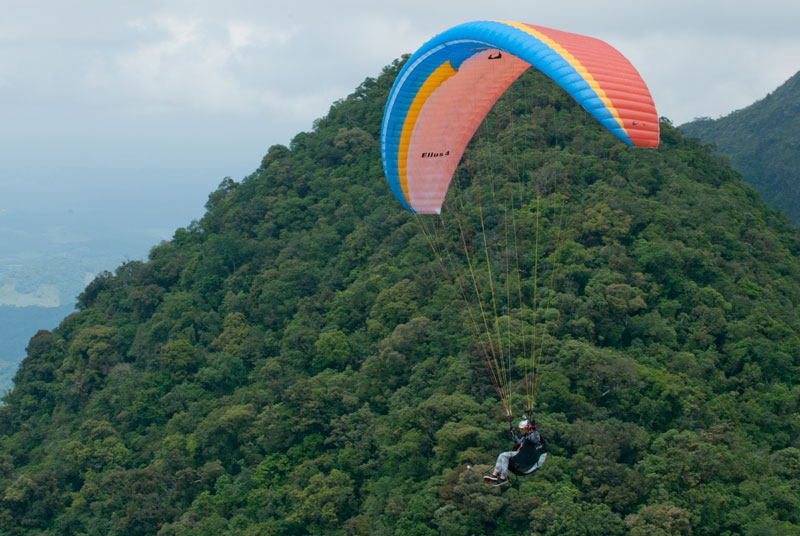

Photos
Project
The ELLUS FIVE consists of 53 cells and has internal crossed diagonals applied at the profiles to distribute the weight uniformly. This maintains the canopy very shapely and cleans and reduces the induced drag.
The ELLUS FIVE was designed at the new software. Its enhanced design and profile are the result of our continuous development and refinement process in terms of performance paired with stability. The improved features of this project permit a large speed range and excellent stability.
Flight Characteristics
Its higher aspect ratio allows a more precise piloting both to active pilots who like to use the body, as well as to passive pilots who prefer to act using the brakes. This characteristic allows a great performance in weak and strong thermals, while stability is maintained.
- Long and tolerating brake length;
- Excellent and precise handling;
- High internal pressure;
- Stability in full speed;
- Light reactions in extreme conditions;
- Good passive safety;
- Excellent take off characteristics, even in nil wind;
- Comfortable piloting;
- Good behaviour in thermals.
Construction Characteristcs
The ELLUS FIVE presents:
- Top and bottom design;
- Riser for big ears;
- Diagonal bands to reduce weight and the number of lines;
- Reinforcements in batten technology;
- Opening on the stabilizers to remove dirt;
- Panels, profiles and parts cut by laser.
Technical Data
| XS | S | M | L | XL | XXL | ||
| Zoom | 0,93 | 0,97 | 1 | 1,03 | 1,07 | 1,11 | |
| Cells | 53 | 53 | 53 | 53 | 53 | 53 | |
| Projected Span | 8,88 | 9,26 | 9,55 | 9,84 | 10,22 | 10,6 | m |
| Projected Surface | 19,67 | 21,40 | 22,74 | 24,12 | 26,04 | 28,02 | m2 |
| Projected A/R | 4,01 | 4,01 | 4,01 | 4,01 | 4,01 | 4,01 | |
| Real Wingspan | 10,98 | 11,46 | 11,81 | 12,16 | 12,64 | 13,11 | m |
| Real Surface | 22,65 | 24,64 | 26,19 | 27,78 | 29,98 | 32,27 | m2 |
| Real A/R | 5,33 | 5,33 | 5,33 | 5,33 | 5,33 | 5,33 | |
| Line Diameter | 1 - 1,5 - 2,1 | mm | |||||
| Height | 715 | 744 | 765 | 786 | 815 | 844 | cm |
| Maximum Profile | 2,54 | 2,65 | 2,73 | 2,81 | 2,92 | 3,03 | m |
| Minimum Profile | 59 | 61 | 63 | 65 | 67 | 70 | cm |
| Weight | 5,9 | 6,2 | 6,5 | 6,9 | 7,3 | 7,8 | kg |
| Take off Weight | 60/80 132/176 |
70/90 154/198 |
85/100 187/220 |
95/110 209/242 |
105/125 231/275 |
120-140 264-308 |
kg lbs |
| Sink Rate Minimum | 1 | 1 | 1 | 1 | 1 | 1 | m/s |
| Minimum Speed | 24 +/- 1 | 24 +/- 1 | 24 +/- 1 | 24 +/- 1 | 24 +/- 1 | 24 +/- 1 | km/h |
| Trim Speed | 38 +/-1 | 38 +/-1 | 38 +/-1 | 38 +/-1 | 38 +/-1 | 38 +/-1 | km/h |
| Maximum Speed | 54+/- 1 | 54+/- 1 | 54+/- 1 | 54+/- 1 | 54+/- 1 | 54+/- 1 | km/h |
| Glide | 9,6 | 9,6 | 9,6 | 9,6 | 9,6 | 9,6 | km/h |
| Places | 1 | 1 | 1 | 1 | 1 | 1 | |
| Certification | Load | B | B | B | B | Load | LTF/EN |
2D View
Materials
Since 1991 SOL has been producing and following the evolution of materials and products. Our experience makes us choose the materials carefully, thus guaranteeing a good stability and a high safety level. All SOL paragliders are manufactured in our own plant, certified by DHV.
Top/Bottom: WTX 40 gr/m2 Nylon 6.6 HT PU+Silicon
Profiles/Diagonal: Pro Nyl 42 g/m2 Nylon 6.6 HT PU hard
Reinforcements: Battens (BT technology)
Lines:
-1,1 mm Cousin Dyneema
-1,1 mm Cousin Superaram
-1,5 mm Cousin Superaram
-2,1 mm Cousin Superaram
Risers: Fitanew 15 x 2,0 mm Flat Multi 1600kg
Carabiners: Ansung Precision 4mm 800kg
Pulleys: Nautos/SOL
Tecnology
SOL technologies for performance and comfort applied on ELLUS FIVE

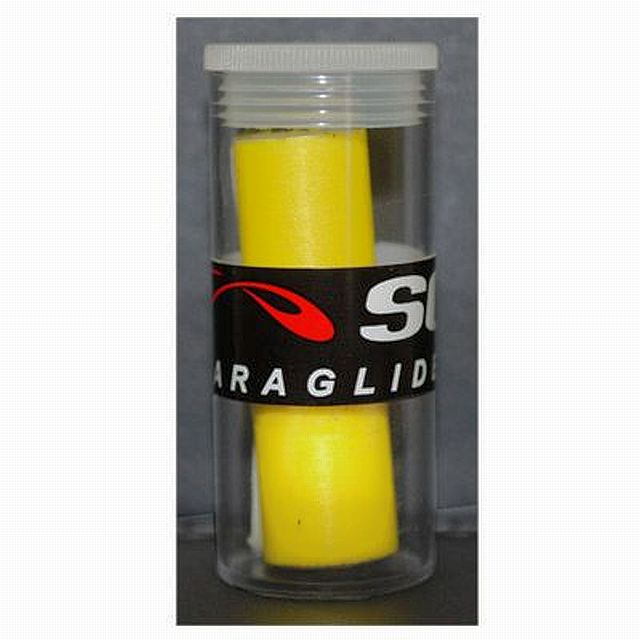

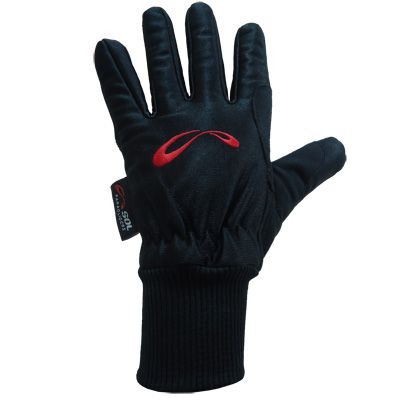

Comes With
|
|
|
|
|
|
|
|
|
